Project: Chiller & Tube Sheet

Industry: Casinos and Convention Centers

Substrate: Carbon Steel

Problem: The Customer was facing mounting electrical costs as the HVAC Chiller was losing efficiency becasue of corrosion, partially clogged tubes and a leak in the Tubesheet.

The Application: The Chiller was shut down, the Chillers tubes were cleaned out and we came in to repair and apply a protective coating to the Tube Sheets, Water Box and Covers. A containment area was built to isolate the media from the abrasive blast necessary to properly create a 3 mil profile to SPF11 specifications in preparation for the epoxy repairs and then the application of a protective coating.

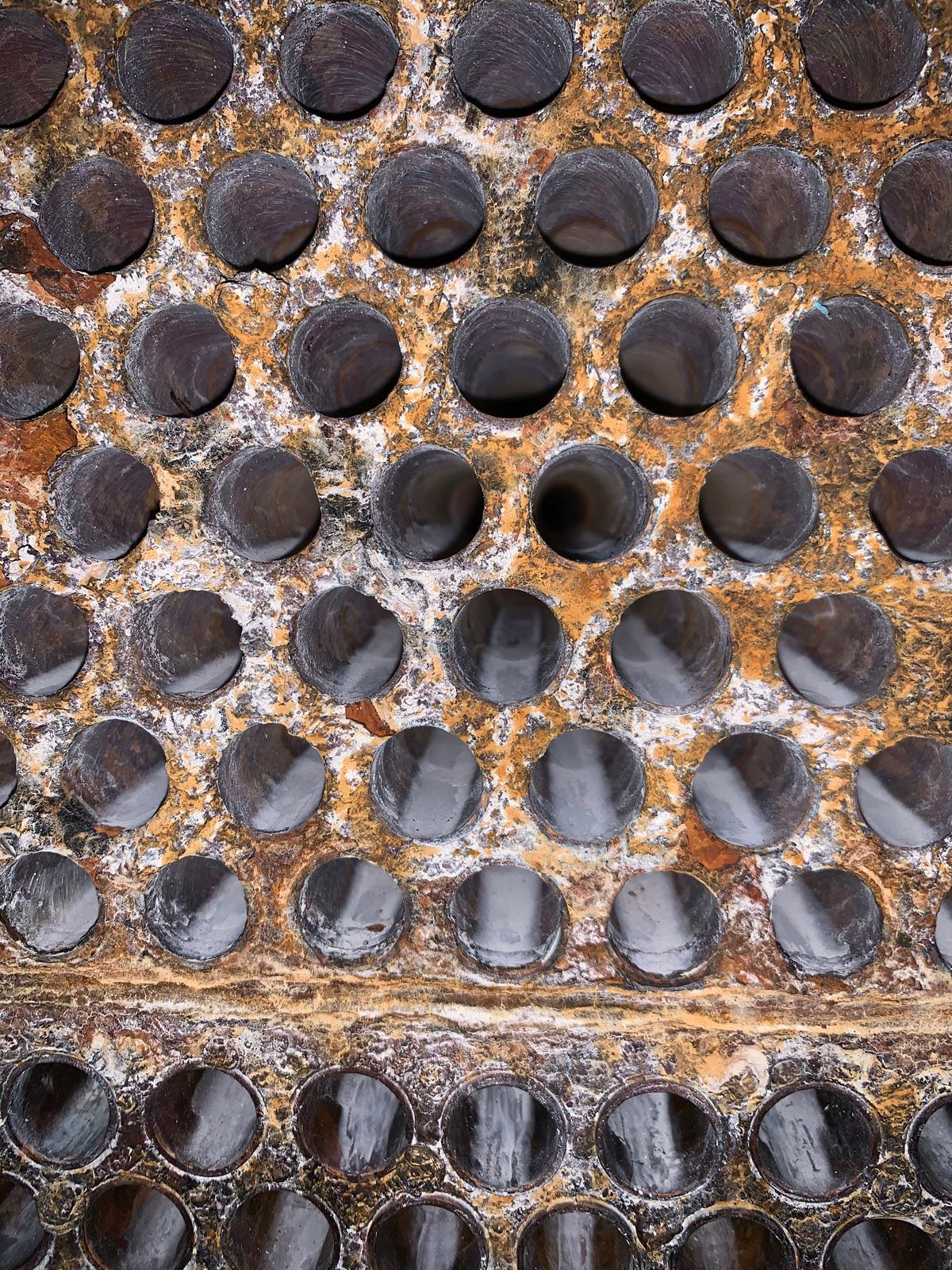

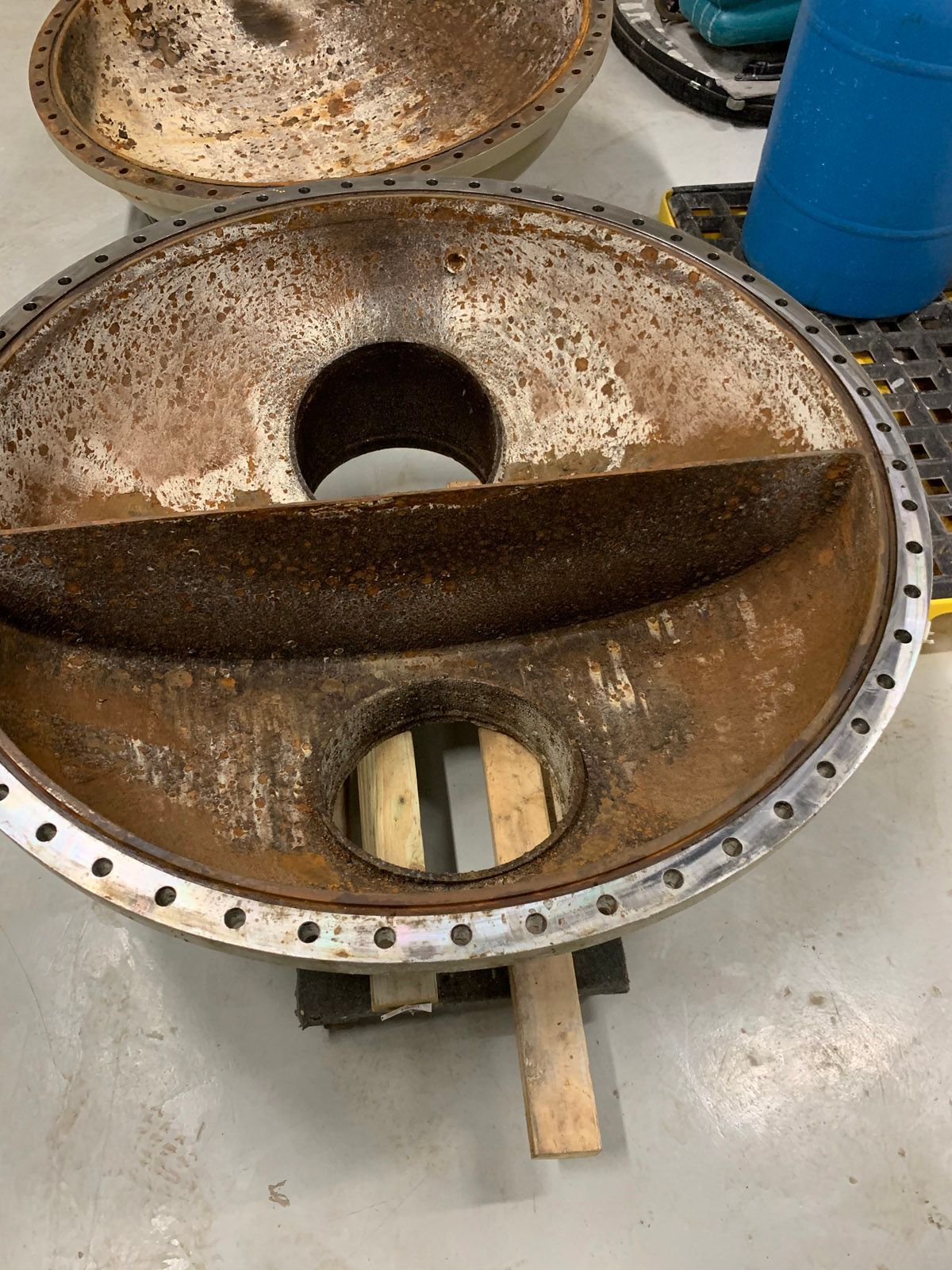

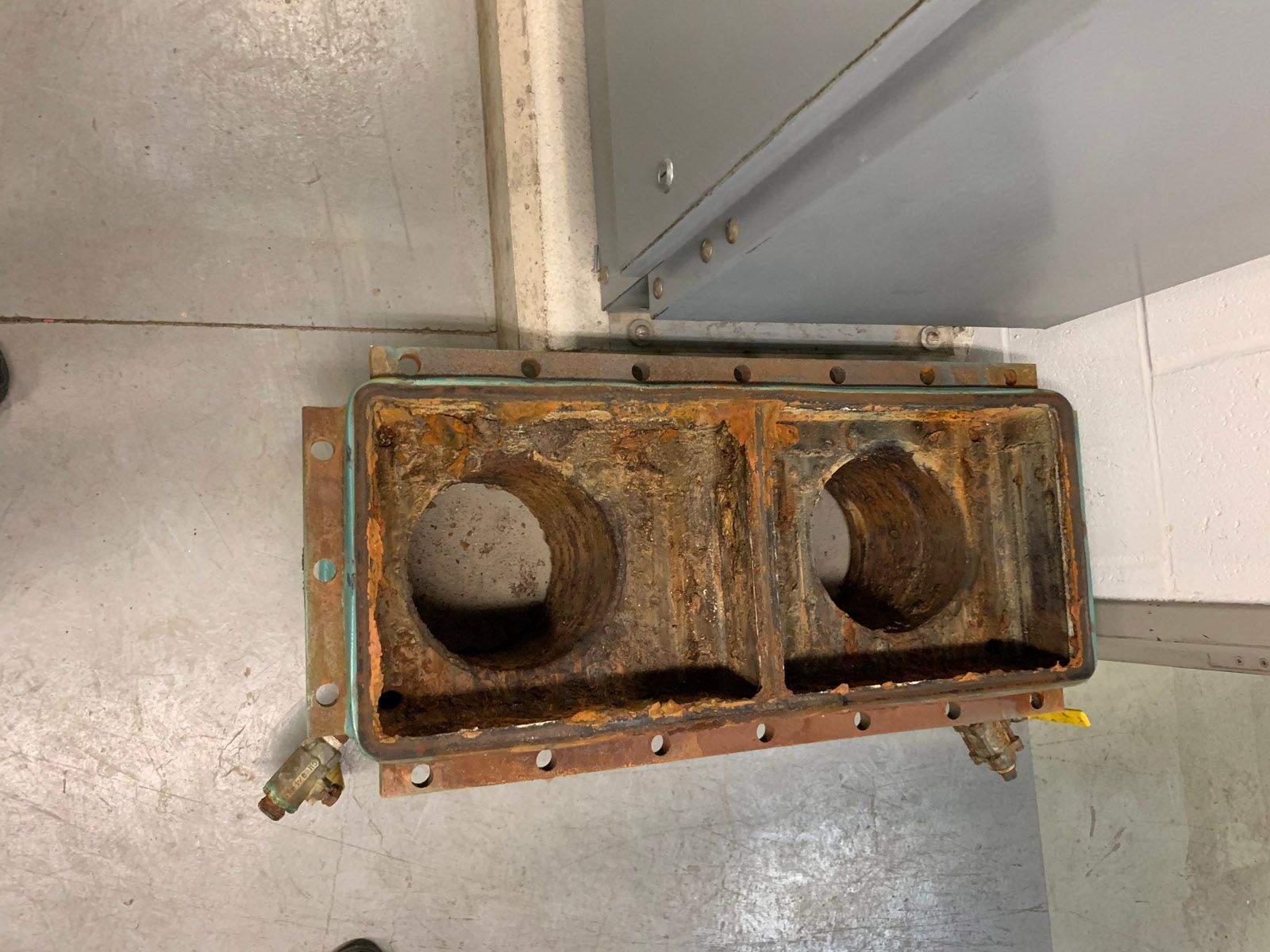

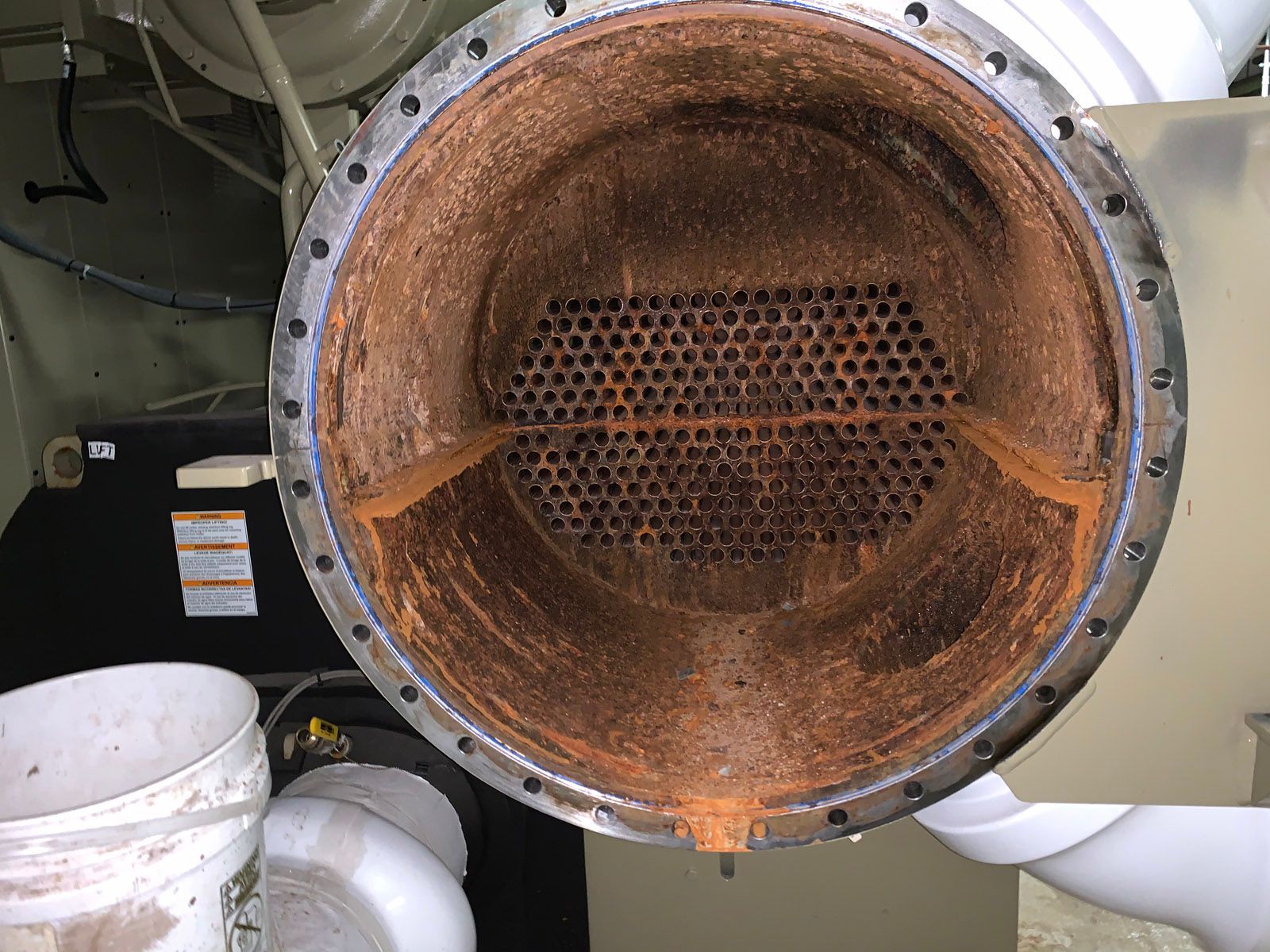

Photograph Descriptions:  Pictures and closeups of the corrosion and severe pitting along the water box edge and tube sheets

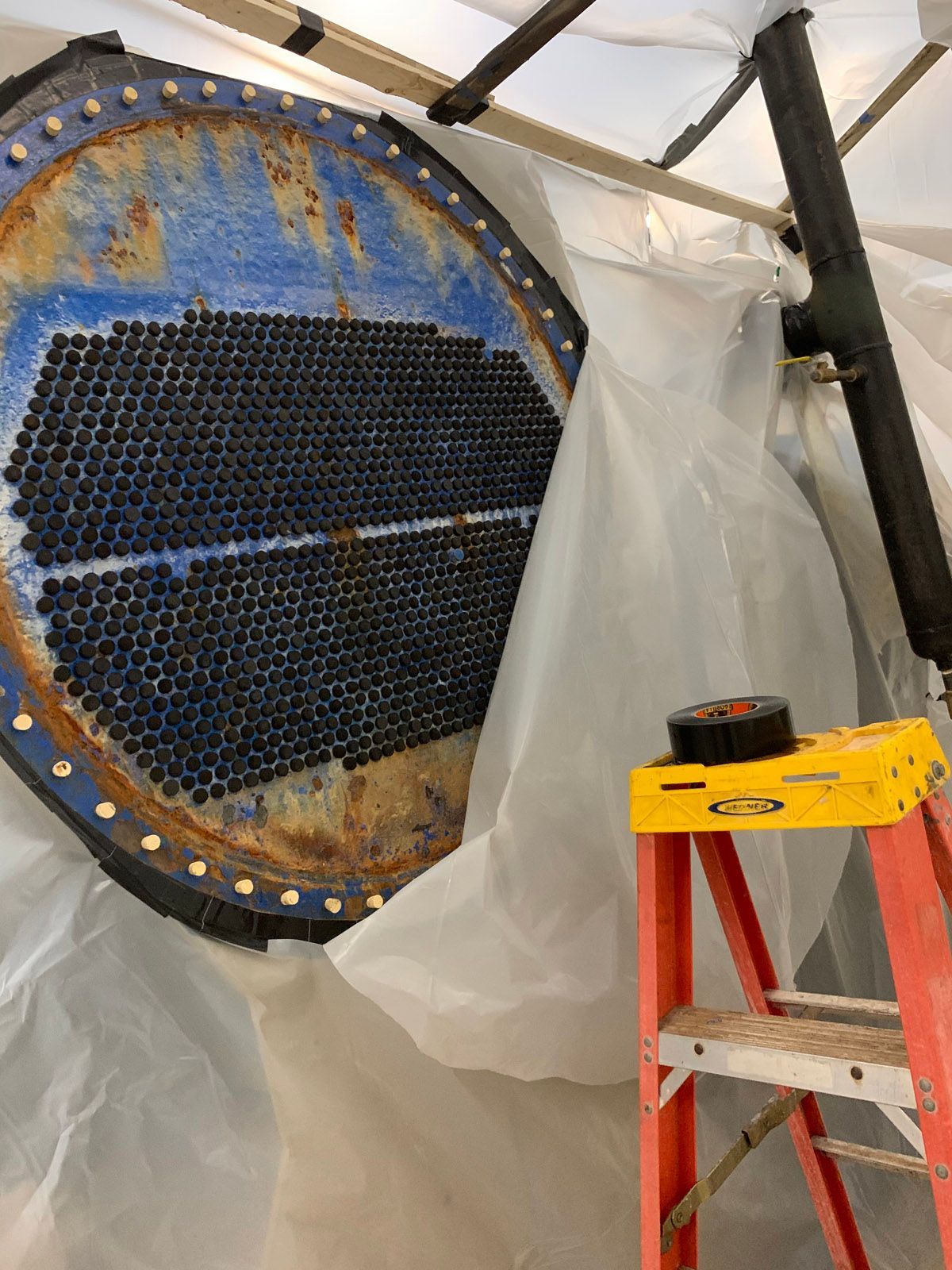

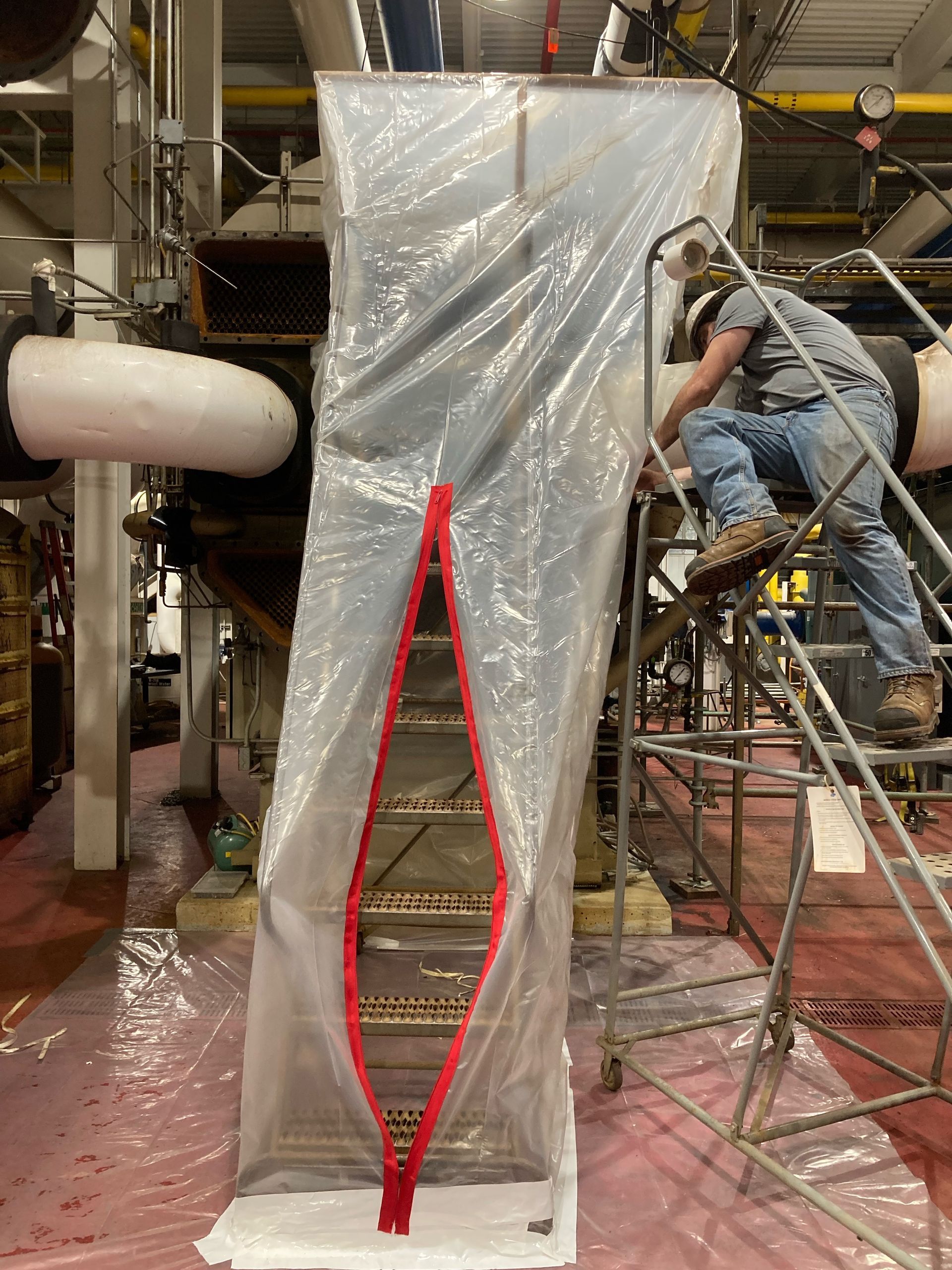

Photograph Descriptions: Containment area to isolate the blast media and closeups of the surface preparation after grit blasting
Photograph Descriptions

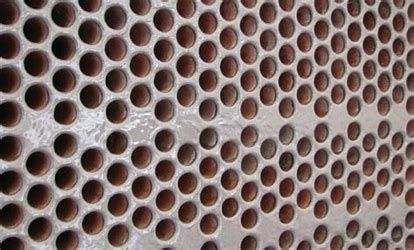

  1. Tubesheet and waterbox edges following thorough grit blasting
  2. Close up picture of the severe pitting along the water box edge

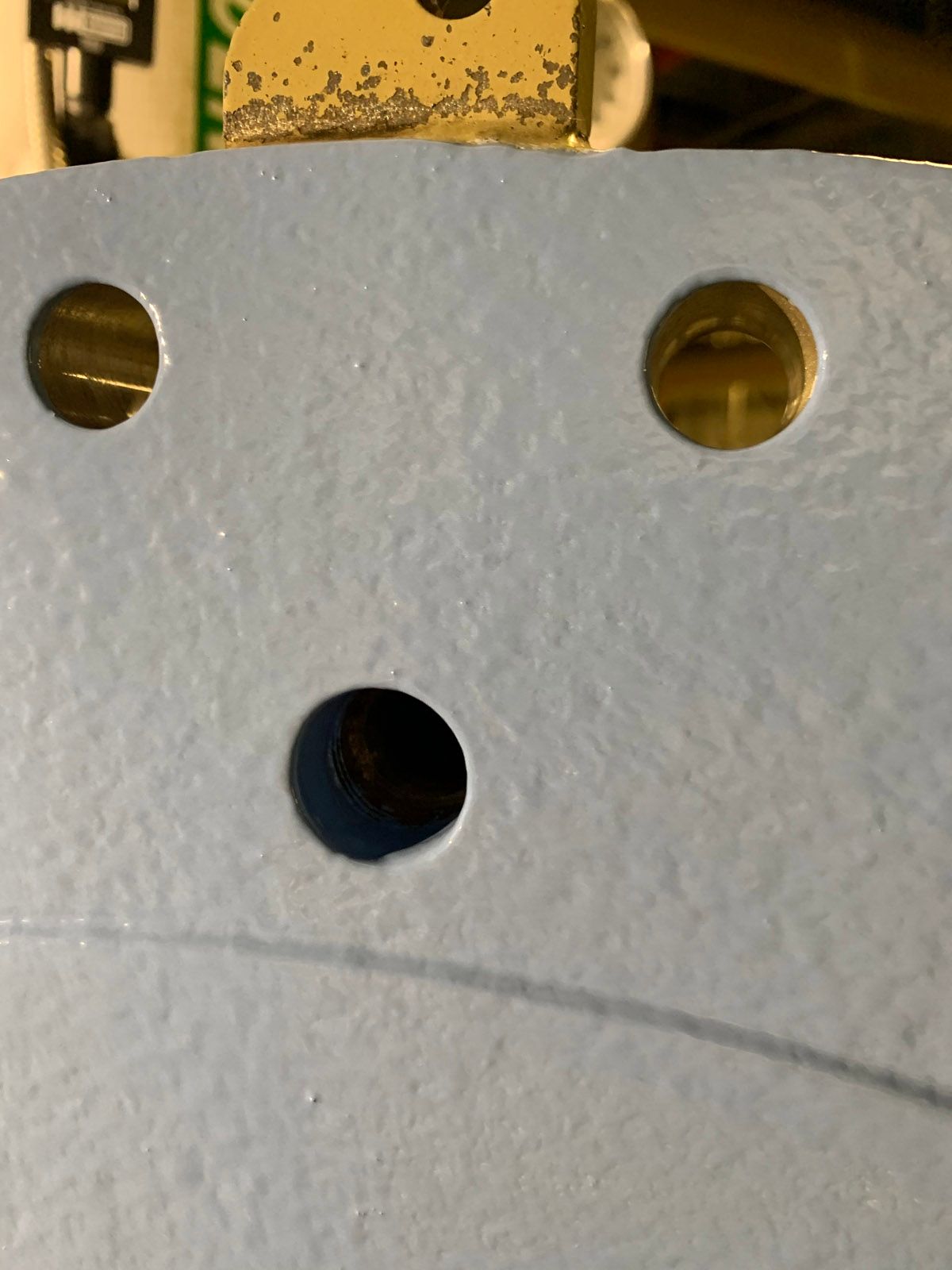

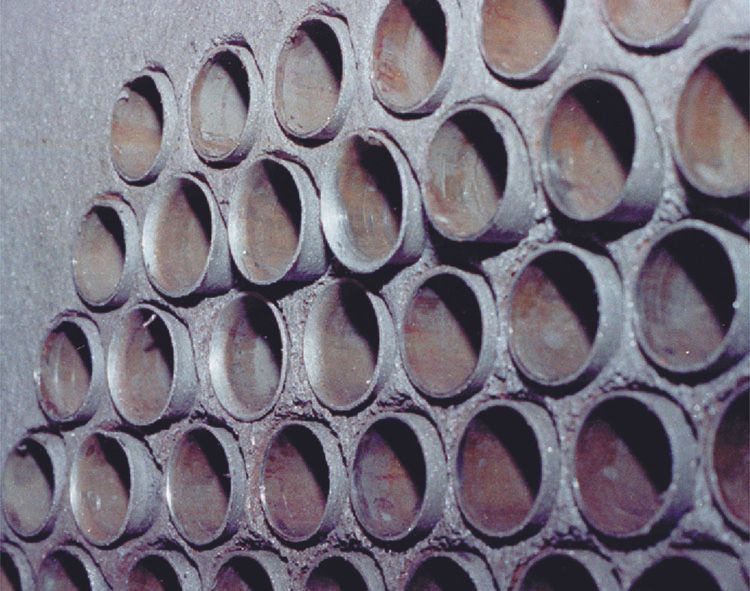

  3. Following application, a protective coating was applied around each tube
  4. Finished applications


Photograph Descriptions
  1. Tubesheet and waterbox edges following thorough grit blasting
  2. Close up picture of the severe pitting along the water box edge
  3. Following application, a protective coating was applied around each tube
  4. Finished applications
